Udonpachi G-BALANCE Shrine
]

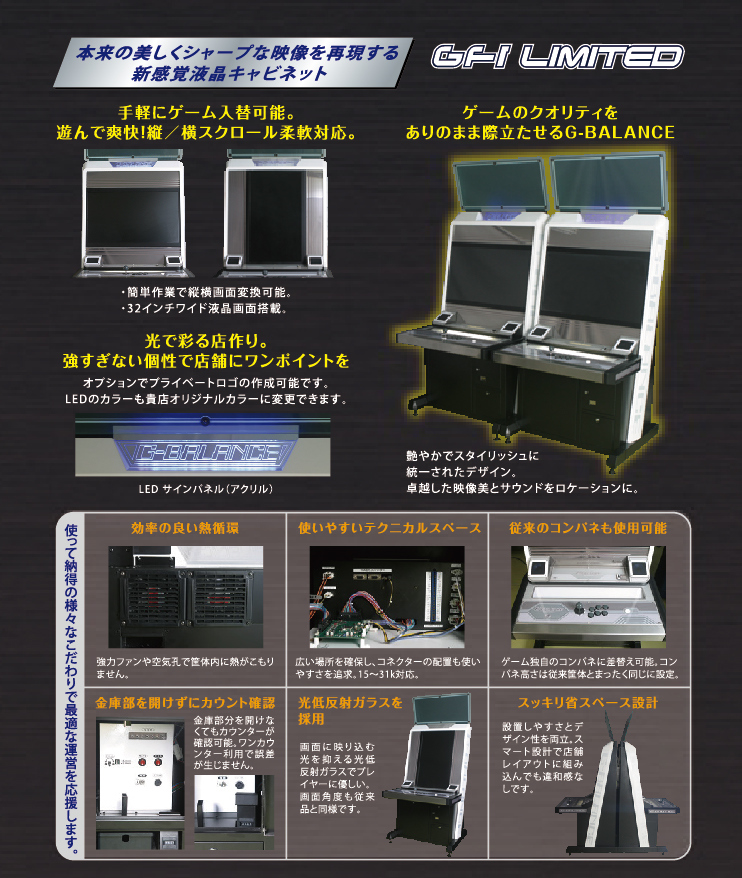

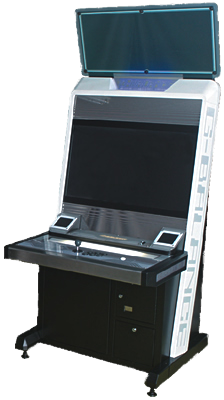

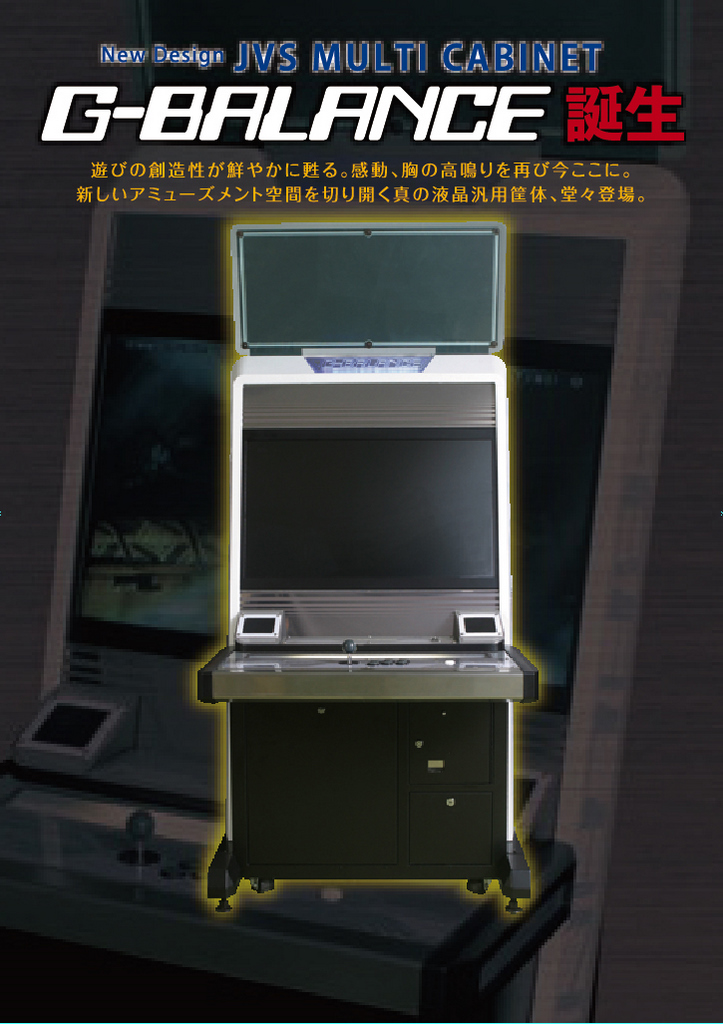

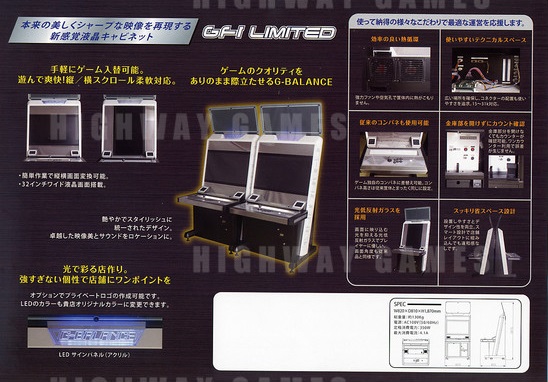

CLICK FOR IMAGE GALLERY
Manual
(<-Click to Download / 40.4MB)
Comprehensive Wiring Diagram VER. 1.5 (English Translation - Rev A)
(<-Click to Download / 4MB)
G-BALANCE Power Supply Wiring Diagram(English Rev A)
(<-Click to Download / 992 KB)
Technical Information :
| General Information | |
| Working Title: |
G-Balance JVS Multi Cabinet 「G-バランスキャビネット」 |
| Released : | Late June 2008 |
| MSRP : | 円398,000 |
| Manufacturer : | GFI Co., Ltd. (株式会社ジー・エフ・アイ) |
|
Distributor : (Kanto) |
Sun Muse Co., Ltd. (株式会社サン・ミューズ) |
|
Distributor : (Kansai) |
Aqua Co., Ltd. (有限会社アクア) |

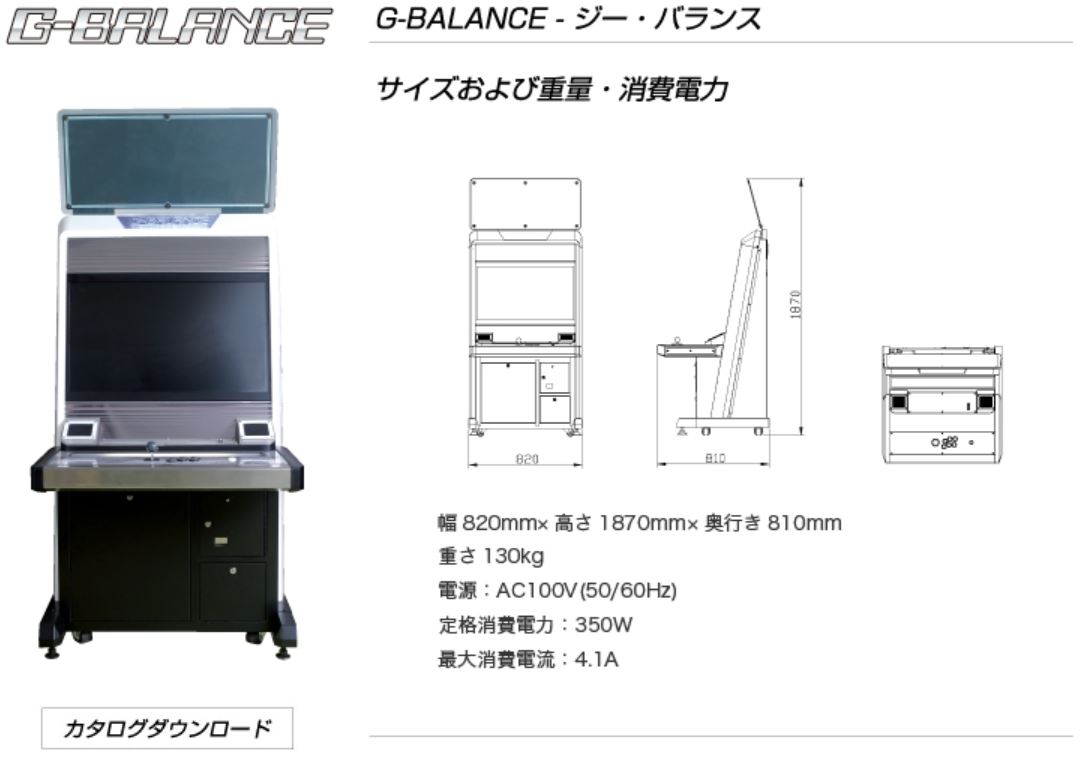

| Mfgr Dimensions : |
Width: 820mm Depth: 810mm Height: 1503mm (1870mm when POP is installed) |
|
Mfgr Shipping Dimensions : |
Width: 840mm Depth: 550mm Height: 1530mm |
|
Reported Shipping Weight (Aftermarket) : |
 |
| ART SET | |
| POP Size : | 800×350 |
| POP Art Size : | A3 |
| Instruction Space : |
|
| Display Information | |
| Display Area : | 32" Diagonal / 16:9 |
| Refresh Rates : | 31/38/64 kHz |
| Panel : |
Hitachi BM080A002A (OEM) Weiya MT32W-26763-1 (Aftermarket) |
| A/D : |
|
| AC Power | |
| Input : | 100VAC (50/60Hz) |
|
Peak Current Consumption : |
4.1A |
|
Rated Power Consumption : |
350W |
|
Service Outlets (AC) : |
x1) 6A Receptacle (Exterior) x2) 3A Receptacle (Interior) |
| DC Power | |
| Chassis : | +12V @ 6.2A |
| JVS : |
+3.3V @ 12A +5V @ 10A +12V @ 4A |
| LCD : | +24V @ 6.2A |
| Options : |
Up Scan Converter [Weiya ACV-011] (Support 15K Mode) GFI G-BALANCE JVS-VSKIT [GL-0803] (VS Cab Display) |
| Other Details | |
| CPanel Height : | 655mm |
|
CPanel Options : |
Sanwa 768p Panel (Viewlix C) Sega Blast City Sega Versus City Sega Astro City Sega New Net City |
**Pending Weighing
|
|
|
||

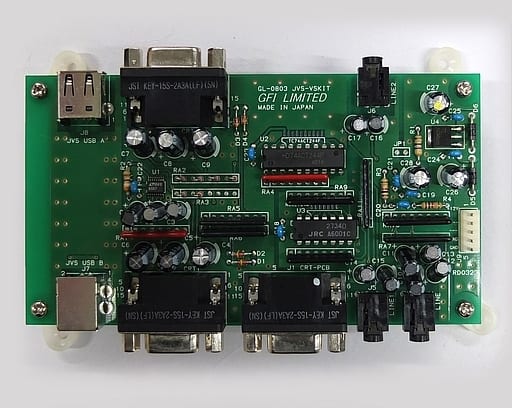

(GL-0803 BJVS-VSKIT )

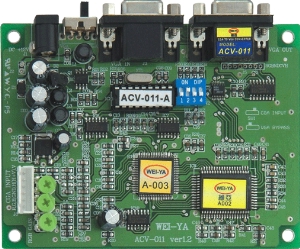

(Weiya ACV-011)
Information Hunting
:

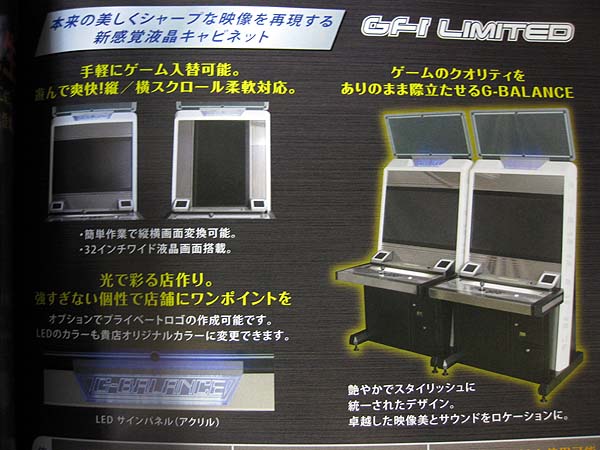

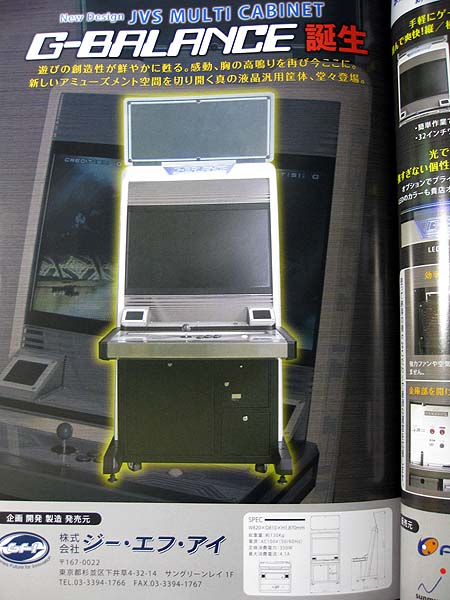

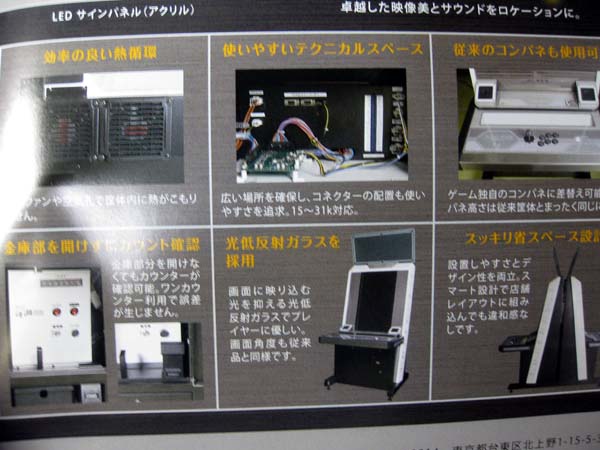

Currently seeking Issue #6 of Amusement Journal 2008 .
The Amusement Journal website showing information related to G-BALANCE.
Possibly announcement information. Will provide scans.
(Right-Click and Open Image in New Tab to view full sized)
Update :
Found images to confirm some contents of this issue .
(Right-Click and Open Image in New Tab to view full sized
-- Work with me here okay? Web components don't work anymore..)
Additional Interesting Information :

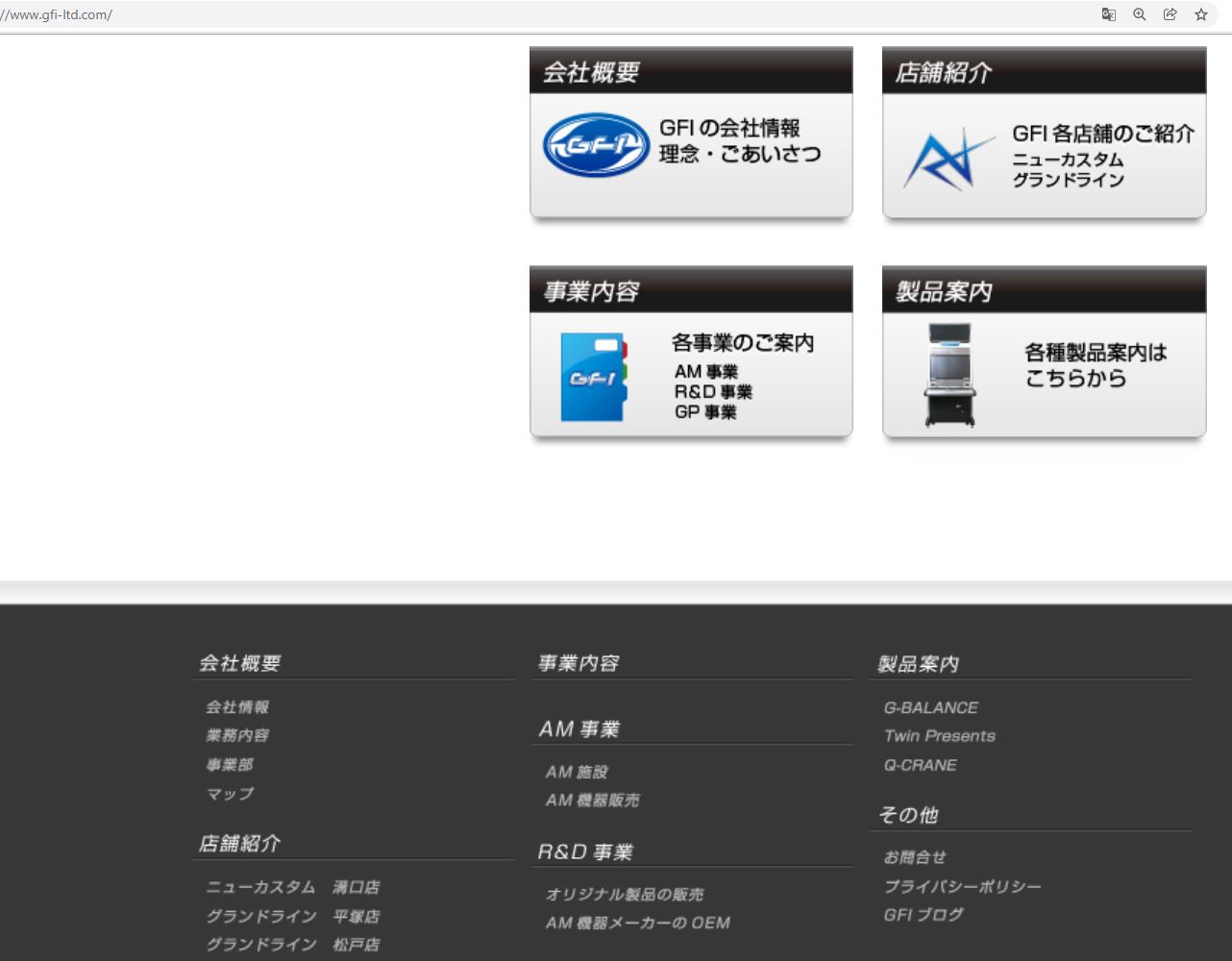

June 9th 2013 Site Capture (Image Only)
Where did they come from ?
The location of GFI Co., Ltd. ! Google Maps capture from 2013 from the year the
address was posted on their website.
2-40-9 Shimoigusa, Suginami-ku, Tokyo Happo Building 2F
What is it now ? A cram school ! (As of Jan 29th 2022)
